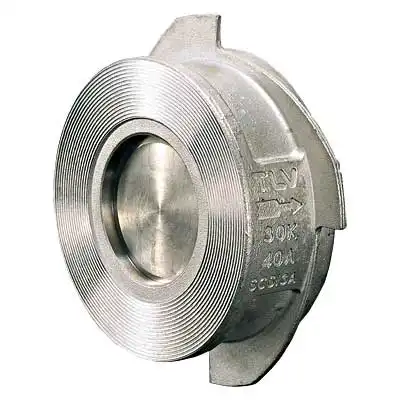

TLV CKF3M Stainless Steel Wafer Check Valve
Compact wafer type check valve in stainless steel for installation between flanges
Stainless steel spring closing mechanism, disc and valve seat/seal
Suitable for installation with most types of flange to BS EN 1092-1, BS10, ASME B16.5 & JIS B2220
Suitable for steam, water and other fluids
Can be installed horizontally or vertically
Easy repair and maintenance
Minimum opening pressure: 0.02 bar
Maximum operating pressure: 30 bar (PN30)
Maximum operating temperature: 350°C
