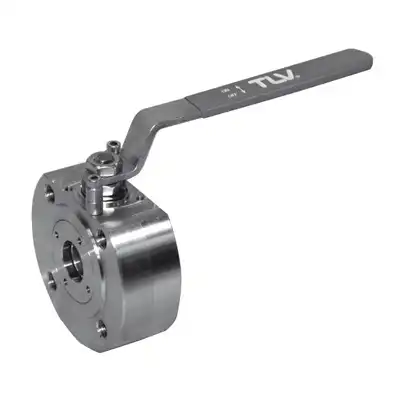

TLV BV6 Carbon Steel Full Bore Wafer Ball Valve

Brand: TLV
SKU: 76BV6

£219.00£1,318.00 ex. VAT

About this product

TLV BV6 Carbon Steel Full Bore Wafer Type Ball Valve

Valve body made of carbon steel A105

Full bore wafer type (flangeless) ball valve for installation between flanges

Bolt holes: See datasheet

Stainless steel 316 ball with PTFE & graphite ball seats/seals

Blow-out proof stem and stem packing made of stainless steel 304 with PTFE stem washer and FKM O-ring

Suitable for use with steam, water, air, and other fluids

Manufactured in accordance with sound engineering practice

Fire safe design in accordance with BS 6755, API 607 & API 6FA

Manual operation with carbon steel lever handle

Designed to be maintenance free

Maximum operating pressure: 9 bar (PN9)

Maximum operating temperature: 180°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Full Bore Ball Valve

Connections

Wafer Type – PN16 (DIN 2501)

Operation

Manual Lever Operated

Body Material

Carbon Steel A105

Body Cover Material

Carbon Steel A105

Ball Material

Stainless Steel 316

Stem Material

Stainless Steel 304

Body Gasket Material

NBR

Ball Seats Material

Carbon fiber filled PTFE

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet

Maximum Operating Pressure

9 bar

Operating Temperature Range

0°C – 180°C

Additional Information

Blow-out proof stem. ISO 5211 Bracket for actuator mounting.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
