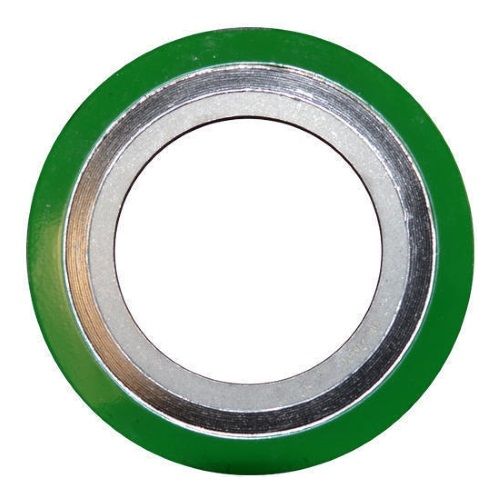

Table D/E Spiral Wound Gasket for BS 10 flanges
Spiral Wound Gaskets have the ability to recover under the action of fluctuating loads caused by process fluid pressure and temperature changes, flange face temperature variations, flange rotation, bolt stress relaxation and creep.
The gasket sealing element consists of a pre-formed metallic winding strip with layers of a softer, more compressible sealing material, which during compression, is densified and flows to fill imperfections in the flange surfaces when the gasket is seated. The metal strip holds the filler giving the gasket mechanical resistance and resilience.
Suits raised or flat faced table D/E pipe flanges to the BS 10:2009 standard
Manufactured to the ASME B16.20 standard for spiral wound gaskets
Ring type or IBC gasket for installation inside the flange bolt circle
Suitable for high pressure and temperature applications
Spiral wound graphite sealing element
Stainless steel 316 inner ring acts as a heatshield and corrosion barrier
Carbon steel outer ring
