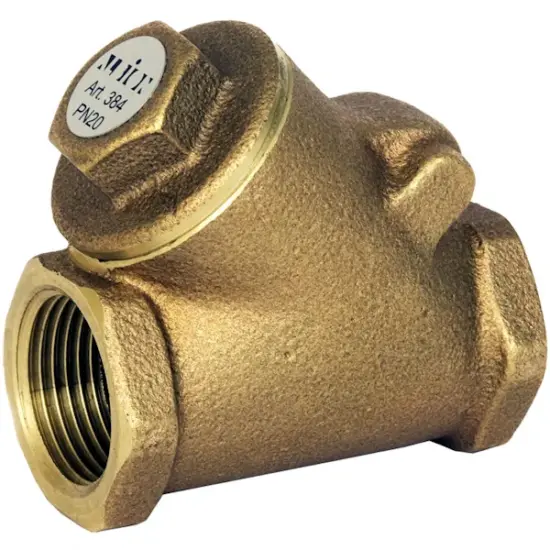

Albion Art384 Bronze Swing Check Valve

Brand:	Albion
SKU:	31ART384

£17.11 – £86.61 ex. VAT

Valve Size

Clear

About this product

Swing type check valve with a bronze body, cap & disc

Female BSPT taper threaded ends conforming to ISO 7-1

Brass hanger pin and plug

Conforms to the BS EN 12288:2010 standard, previously BS 5154

Suitable for use with saturated steam

Maximum operating pressure: 20 bar (PN20) up to 70°C

Operating temperature range: -10°C – 232°C

Weight	N/A
Dimensions	N/A
Brand	Albion
Valve Type	Swing Check Valve
Connections	Female BSPT Taper Threads – ISO 7-1, BS EN 10226-1
Manufacturing Standard	Conforms to BS EN 12288 (Previously BS 5154) & MSS-SP-80
Body Material	Bronze (ASTM B62)
Closing Mechanism Materials	Bronze (Disc)
Maximum Operating Pressure	20 bar
Operating Temperature Range	-10°C – 232°C
Approvals	WRAS Approved (Potable water)
Additional Information	Suitable for saturated steam. Brass hanger pin & plug.
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
