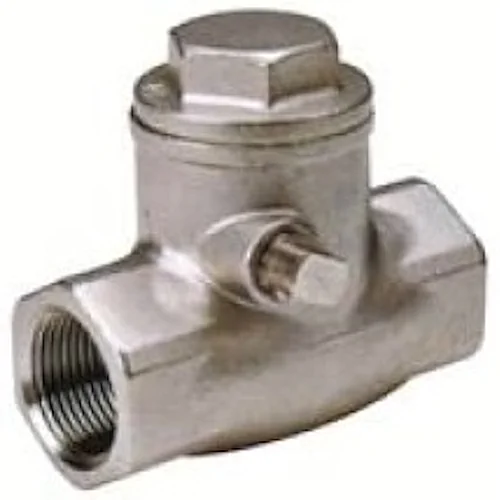

Genebre Art2430 Stainless Steel Swing Check Valve (PN16)

Brand:	Genebre
SKU:	51ART2430

£26.73 – £104.54 ex. VAT

Valve Size

Clear

About this product

Valve body and cap made of shot blasted stainless steel 1.4408 (CF8M), sealed with a PTFE gasket

Female BSPP parallel threaded ends conforming to ISO 7-1 (BS EN 10226-1)

Swing type closing mechanism with a stainless steel 1.4408 disk on a stainless steel 316 stem

Suitable for installation with horizontal or vertical flow

Maximum operating pressure: 16 bar (PN16) at up to 100°C

Operating temperature range: -30°C – 180°C

Weight	N/A
Dimensions	N/A
Brand	Genebre
Valve Type	Swing Check Valve
Connections	Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1
Body Material	Stainless Steel 1.4408 (Shot Blasted)
Closing Mechanism Material	Stainless Steel 1.4408
Spring Material	Stainless Steel 316
Body Gasket Material	PTFE
Maximum Operating Pressure	16 bar
Operating Temperature Range	-20°C – 180°C
Additional Information	Suitable for horizontal or vertical installation.
Certification Availability	N/A
