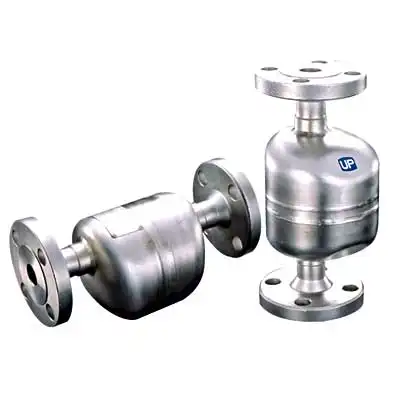

3/4″ TLV SS3N-10 Stainless Steel Free Float Steam Trap (PN25/40 Flanged)
Welded body made of stainless steel 316L (DIN 1.4404)
PN25/PN40 Flanged ends to DIN 2501 (BS EN 1092-1)
Self-modulating stainless steel float provides a steam-tight seal as well as continuous, smooth, low velocity condensate discharge as process loads vary
Automatic bi-metal air vent for fast start-up
Constant water-seal and unique three-point seating ensure a steam tight seal, even under no-load conditions
Single moving part, the free float ensures a trouble-free service life and eliminates concentrated valve wear
Built-in stainless steel 304 filter/screen to protect internal components and ensure trouble-free operation
Suitable for horizontal installation
Discharge capacity: Up to 220 kg/h
Maximum operating pressure: 10 bar
Maximum operating temperature: 400°C
