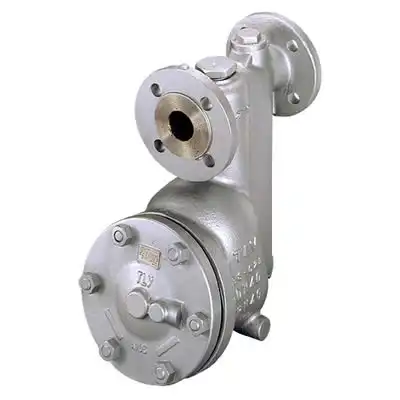

1 1/2″ TLV SJH7NX-14 Stainless Steel Free Float Steam Trap (PN40 Flanged)
Main body elements made of cast stainless steel A351
PN25/PN40 Flanged ends to DIN 2501 (BS EN 1092-1)
Self-modulating stainless steel float provides a steam tight seal as well as continuous, smooth, low velocity condensate discharge as process loads vary
Thermostatic capsule (X-element) with “fail open” feature vents air automatically until close-to-steam temperature ensuring a fast start-up
Built-in stainless steel screen to protect internal components and ensure trouble-free operation
Single moving part, the free float ensures a trouble-free service life and eliminates concentrated valve wear
Easy, inline access to internal parts simplifies cleaning and reduces maintenance costs
Suitable for horizontal installation
Discharge capacity: Up to 4000 kg/h
Maximum operating pressure: 14 bar
Maximum operating temperature: 240°C
