PU220 2/2 Brass Normally Closed Zero Rated Assisted Lift Solenoid Valve (EPDM Seal)

Brand: SHAKO Fluid Power
SKU: 6702

£83.33£113.41 ex. VAT

About this product

PU220 2/2 Brass Normally Closed Zero Rated Solenoid Valve (EPDM Seal)

Brass valve body with stainless steel internals

Female BSPP parallel threaded ends

EPDM Seals & gasket

Operation: Zero rated

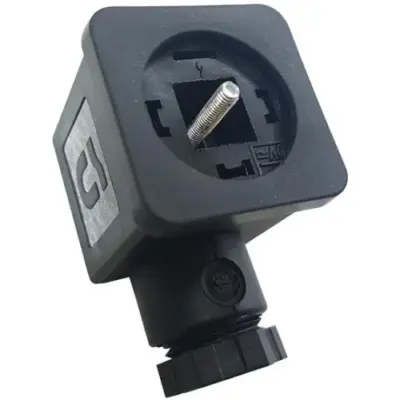

Fitted with 15w Nass Magnet coil & 3-pin DIN 43650A connector

Normally closed, power to open

Opening/closing time: Approx. 50ms

CE approved, class H insulated & IP65 rated coil

Suitable for use with air, water, light oil and more

Maximum operating pressure: Up to 8.5 bar (123psi) depending on coil

Operating temperature range: -20°C – 60°C

Process temperature range: -40°C – 150°C

Current & voltage to be specified by customer when ordering, see datasheet for available configurations

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Solenoid Valve (Normally Closed)

Connections

Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1

Operation

Zero Rated (Assisted Lift)

Body Material

Brass

Major Internal Materials

Stainless Steel

Coil Material

Thermoset Resin

Body O-Ring Material

EPDM Rubber

Coil/Connector Gasket Material

EPDM Rubber

Maximum Operating Pressure

8.5 bar

Operating Temperature Range

-40°C – 160°C

Additional Information

Fitted with Nass Magnet 15W coil. Customer to specify voltage & current type.

Certification Availability

N/A
