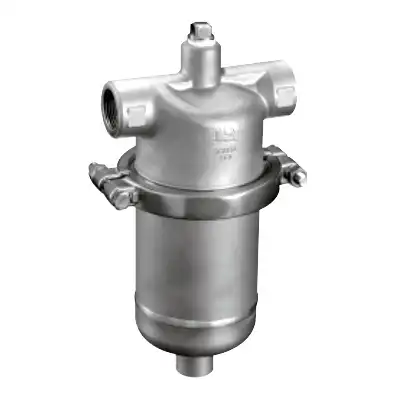

TLV SF1 Stainless Steel Filter & Cyclone Separator

Brand: TLV
SKU: 76SF1

£3,476.00£6,342.00 ex. VAT

About this product

TLV SF1 Stainless Steel Filter With Built-In Cyclone Separator

Compact, lightweight design with a body made of cast stainless steel A351

Female BSPT taper threaded ends to DIN 2999

(0.5m) 5 layer sintered stainless steel wire mesh is reusable, easy to clean and introduces a very small pressure drop

Built in cyclone separator with up to 98% efficiency removes condensate, dirt and impurities for dry steam, less maintenance and a longer service life

2-Piece, 2-bolt stainless steel body clamp allows for easy disassembly and cleaning, further reducing maintenance downtime

Designed for use with process steam and air as well as other non-toxic and non-flammable gases

BSP female threaded connections for condensate drain port and cleaning/pressure detection port

Maximum operating pressure: 10 bar (PN10)

Operating temperature range: 0°C – 185°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Cyclone Separator & Filter

Connections

Female BSPT Taper Threaded (DIN 2999)

Body Material

Cast Stainless Steel A351

Screen Material

Stainless Steel

Baffle Material

Stainless Steel 304

Body Gasket Material

Fluorine Resin

Maximum Operating Pressure

10 bar

Operating Temperature Range

0°C – 185°C
