TLV 1039 Bronze Lift Type Check Valve (PN32)

Brand: TLV
SKU: 761039

£0.00 ex. VAT

About this product

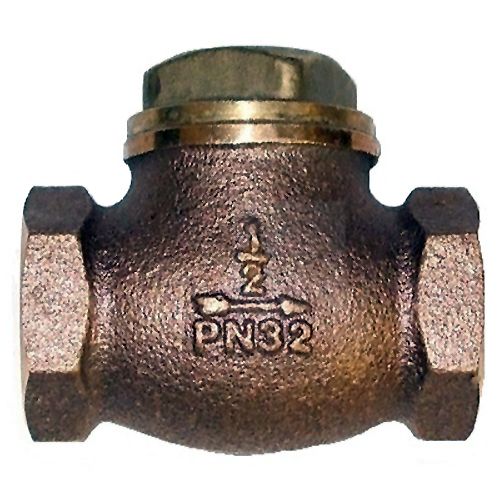

TLV 1039 Bronze Horizontal Lift Type Check Valve

Bronze body, brass disc & cap

Female BSPT taper threaded ends to DIN 2999

Horizontal lift type closing mechanism

For horizontal installation only

Conforms to BS 5154:1991 standard (series B)

Suitable for up to 14 bar saturated steam

Suitable for air, oil, steam & water

Maximum operating pressure: 32 bar (PN32) at up to 100°C

Operating temperature range: 0°C – 198°C

Specification

Weight N/A
Brand

Valve Type

Lift Type Check Valve

Connections

Female BSPT Taper Threaded (DIN 2999)

Manufacturing Standard

BS 5154

Body Material

Bronze

Disc Material

Brass

Cap Material

Brass

Maximum Operating Pressure

32 bar

Operating Temperature Range

0°C – 198°C

Additional Information

Horizontal installation only.

Certification Availability

Contact Us (Chargeable, may increase delivery time.)
