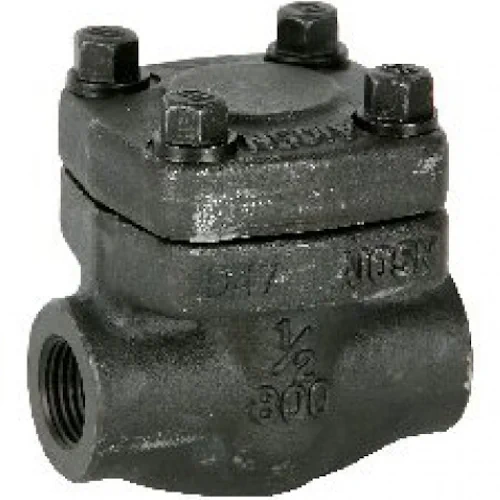

Genebre Art2234N Forged Steel Class 800 Piston Type Check Valve

Brand:	Genebre
SKU:	51ART2234N

£35.83 – £51.56 ex. VAT

Valve Size

Clear

About this product

Class 800 piston check valve conforming to EN ISO 15761 (API 602)

Valve body and bonnet made of forged carbon steel ASTM A105, sealed with a stainless steel 304 & graphite gasket

Female NPT taper threaded ends conforming to ASME B1.20.1

Piston made of tempered stainless steel 420 (ASTM A276)

Suitable for horizontal or vertical installation

Minimum opening pressure: 37 mbar

Maximum operating pressure: 140 bar (PN140) at up to 40°C

Operating temperature range; -30°C – 420°C

Weight	N/A
Dimensions	N/A
Brand	Genebre
Valve Type	Class 800 Piston Check Valve
Connections	Female NPT Taper Threaded – ASME B1.20.1
Manufacturing Standard	Conforms to EN ISO 15761 (API 602)
Body Material	Carbon Steel ASTM A105N (Phosphatized)
Piston Material	Stainless Steel 420 (ASTM A276)
Spring Material	Stainless Steel 304
Body Gasket Material	Stainless Steel 304 + Graphite
Maximum Operating Pressure	140 bar
Operating Temperature Range	-30°C – 420°C
Additional Information	Minimum opening pressure: 37 mbar. Suitable for horizontal or vertical installation
Certification Availability	2.1 Letter of Conformity Only – Must be requested at time of order
