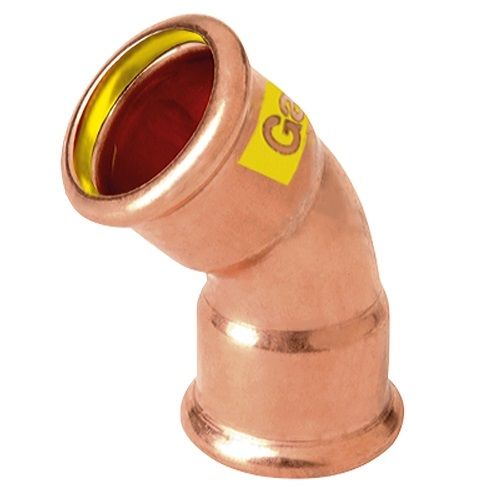

M-Press Copper Gas 45 Degree Bend

Brand: M-Press
SKU: 66-7923

£1.68£28.36 ex. VAT

About this product

M-Press Copper Gas 45 Degree Bend

M-Profile press fitting made of CW024A copper, conforms to BS EN 1254-7

Supplied with yellow HNBR O-rings/seals for gas, to be installed by the end user

DVGW G260 approved for use on natural gas and liquid petroleum gas (LPG)

Fitting wall thickness: See datasheet

Supplied with gas warning labels, to be applied to exterior of fitting

Can be installed in seconds using a pressing machine, no soldering or hot working required

30-year guarantee provided by M-Press

Maximum operating pressure: 5 bar (PN5)

Operating temperature range: -20°C – 70°C (With HNBR seal)

Depending on stock, seals may be supplied factory fitted or loose for end user installation.

Specification

Weight N/A
Dimensions N/A
Brand

Fitting Type

45 Degree Bend

Connections

M-Profile Press Fit Ends

Body Material

CW024A Copper (BS EN 1254-7)

Seal Material

HNBR (Seals may be supplied loose for end user installation)

Maximum Operating Pressure

5 bar

Operating Temperature Range

-20°C – 70°C

Approvals

DVGW G260 Approved (Gas)

Additional Information

30 Year manufacturers guarantee

Certification Availability

N/A
