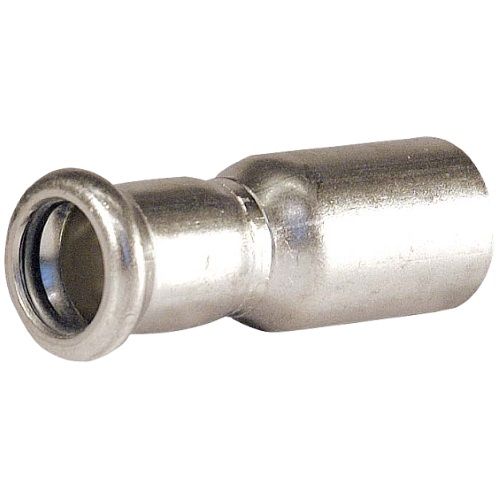

M-Press Stainless Steel 316 Steam Straight Reducer

Brand: M-Press
SKU: 66-1343

£3.83£21.53 ex. VAT

About this product

M-Press Stainless Steel 316 Steam Straight Reducer

M-Profile press fitting made of stainless steel 316 (1.4404), conforms to BS EN 10088-3

Supplied with factory fitted high temperature FEPM (Aflas) seal/O-ring.

Can be installed in seconds using a pressing machine, no soldering or hot working required

50 Year guarantee provided by M-Press

Fitted with white identification marker

Pressure/Temperature Ratings – Normal Use

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -30°C – 235°C (With FEPM/Aflas seals)

Pressure/Temperature Ratings – Steam

Maximum operating pressure: 7 bar (PN7)

Operating temperature range: -30°C – 170°C (With FEPM/Aflas seals)

Specification

Weight N/A
Dimensions N/A
Brand

Fitting Type

Straight Reducer

Connections

Plain x M-Profile Press Fit Ends

Body Material

Stainless Steel 316 (BS EN 10088)

Seal Material

FEPM (Aflas)

Maximum Operating Pressure

16 bar (Steam 7 bar)

Operating Temperature Range

-30°C – 235°C (Steam -30°C – 170°C)

Additional Information

40 Year manufacturers guarantee

Certification Availability

N/A
