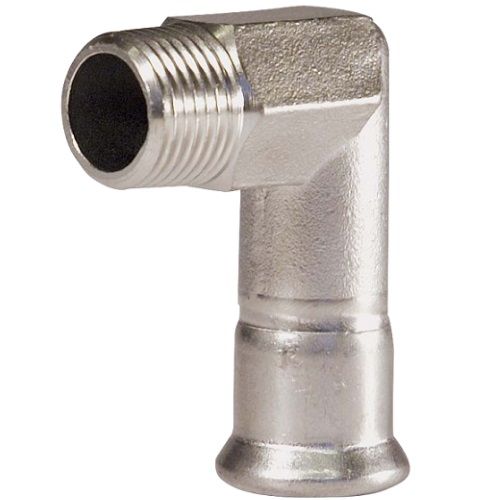

BSP Male M-Press Stainless Steel 316 Steam 90 Degree Elbow
M-Profile press fitting made of stainless steel 316 (1.4408), conforms to BS EN 10283:2019
M-Profile press fit x Male BSPT taper threaded to BS EN 10226-1
Supplied with factory fitted high temperature FEPM (Aflas) seals/O-rings.
Can be installed in seconds using a pressing machine, no soldering or hot working required
50 Year guarantee provided by M-Press
Fitted with white identification marker
Pressure/Temperature Ratings – Normal Use
Maximum operating pressure: 16 bar (PN16)
Operating temperature range: -30°C – 235°C (With FEPM/Aflas seals)
Pressure/Temperature Ratings – Steam
Maximum operating pressure: 7 bar (PN7)
Operating temperature range: -30°C – 170°C (With FEPM/Aflas seals)
