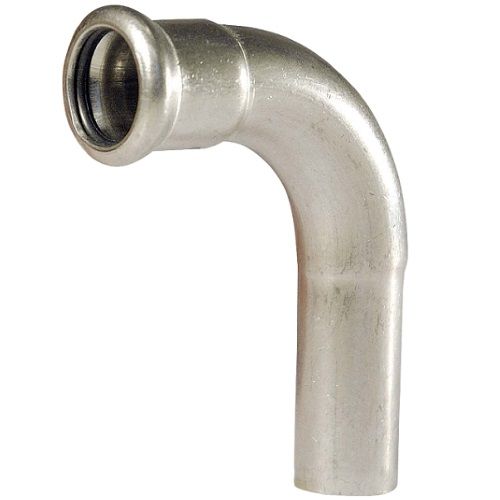

M-Press Stainless Steel 316 Steam 90 Degree Male/Female Bend

Brand:	M-Press
SKU:	66-1321

£4.51 – £29.78 ex. VAT

Fitting Size

Clear

About this product

M-Profile press fitting made of stainless steel 316 (1.4404), conforms to BS EN 10088-3

Supplied with factory fitted high temperature FEPM (Aflas) seals/O-rings.

Can be installed in seconds using a pressing machine, no soldering or hot working required

50 Year guarantee provided by M-Press

Fitted with white identification marker

Pressure/Temperature Ratings – Normal Use

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -30°C – 235°C (With FEPM/Aflas seals)

Pressure/Temperature Ratings – Steam

Maximum operating pressure: 7 bar (PN7)

Operating temperature range: -30°C – 170°C (With FEPM/Aflas seals)

Weight	N/A
Brand	M-Press
Fitting Type	Male/Female (Street) 90 Degree Bend
Connections	Plain x M-Profile Press Fit Ends
Body Material	Stainless Steel 316 (BS EN 10088)
Seal Material	FEPM (Aflas)
Maximum Operating Pressure	16 bar (Steam 7 bar)
Operating Temperature Range	-30°C – 235°C (Steam -30°C – 170°C)
Additional Information	40 Year manufacturers guarantee
Certification Availability	N/A
