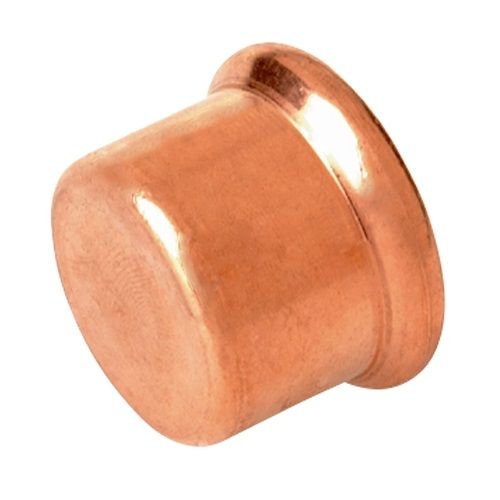

M-Press Copper Steam End Cap
M-Profile press fitting made of CW024A copper conforming to BS EN 1254-7
Supplied with factory fitted high temperature FEPM (Aflas) seals/O-rings.
Fitting wall thickness: See datasheet
Can be installed in seconds using a pressing machine, no soldering or hot working required
50 Year guarantee provided by M-Press
Fitted with white identification marker
Pressure/Temperature Ratings – Normal Use
Maximum operating pressure: 16 bar (PN16)
Operating temperature range: -30°C – 235°C (With FEPM/Aflas seals)
Pressure/Temperature Ratings – Steam
Maximum operating pressure: 7 bar (PN7)
Operating temperature range: -30°C – 170°C (With FEPM/Aflas seals)
