M-Press Copper Steam 90 Degree Bend

Brand: M-Press
SKU: 66-6620

£1.55£28.40 ex. VAT

About this product

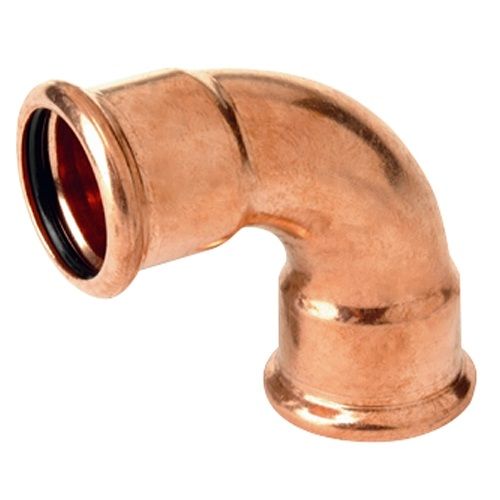

M-Press Copper Steam 90 Degree Bend

M-Profile press fitting made of CW024A copper conforming to BS EN 1254-7

Supplied with factory fitted high temperature FEPM (Aflas) seals/O-rings.

Fitting wall thickness: See datasheet

Can be installed in seconds using a pressing machine, no soldering or hot working required

50 Year guarantee provided by M-Press

Fitted with white identification marker

Pressure/Temperature Ratings – Normal Use

Maximum operating pressure: 16 bar (PN16)

Operating temperature range: -30°C – 235°C (With FEPM/Aflas seals)

Pressure/Temperature Ratings – Steam

Maximum operating pressure: 7 bar (PN7)

Operating temperature range: -30°C – 170°C (With FEPM/Aflas seals)

Specification

Weight N/A
Brand

Fitting Type

90 Degree Bend

Connections

M-Profile Press Fit Ends

Body Material

CW024A Copper (BS EN 1254-7)

Seal Material

FEPM (Aflas)

Maximum Operating Pressure

16 bar (Steam 7 bar)

Operating Temperature Range

-30°C – 235°C (Steam -30°C – 170°C)

Additional Information

50 Year manufacturers guarantee

Certification Availability

N/A
