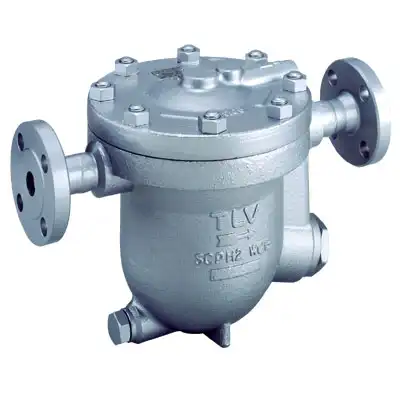

2″ TLV JH7RL-X-14 Cast Steel Free Float Steam Trap (ANSI-150 Flanged)
Main body made of cast steel A216 WCB
Class-150 flanged ends to ANSI/ASME B16.5
Self-modulating, precision ground stainless steel float provides a steam tight seal as well as continuous, smooth, low velocity condensate discharge as process loads vary
Thermostatic capsule (X-element) with “fail open” feature vents air automatically until close-to-steam temperature ensuring a fast start-up
Built-in stainless steel screen to protect internal components and ensure trouble-free operation
Easy access to internal parts simplifies cleaning and reduces maintenance costs
Discharge capacity: 2500 kg/h
Maximum operating pressure: 14 bar
