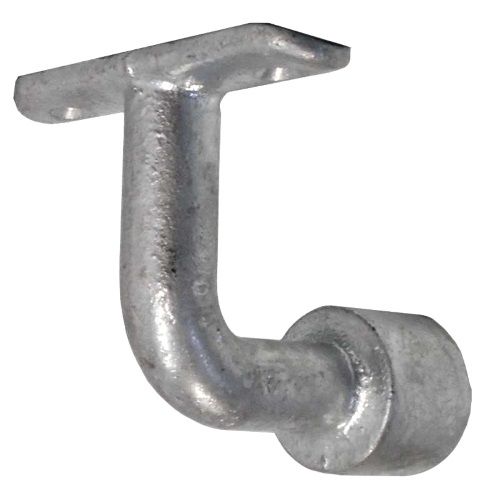

Fastclamp DDA04 Galvanised Handrail Intermediate Bracket
The FastClamp DDA04 ductile iron intermediate bracket supports the top or middle rail tube at an upright when used with the DDA01. Handrail tube can be attached to this fitting using either 2 self tapping screws or 2 pop rivets.
Made of ductile iron to BS EN 1563:2018 with a hot dipped galvanised (HDG) finish to BS EN ISO 1461:2009
For installation with 1 1/4″ (32mm) NB (nominal bore) steel pipe and tube with a 42.4mm OD (outer diameter)
Complies with the Equality Act 2010 as well as part ‘M’ of the Building Regulations
Designed for use in public and commercial galvanised handrail systems to allow disabled access
