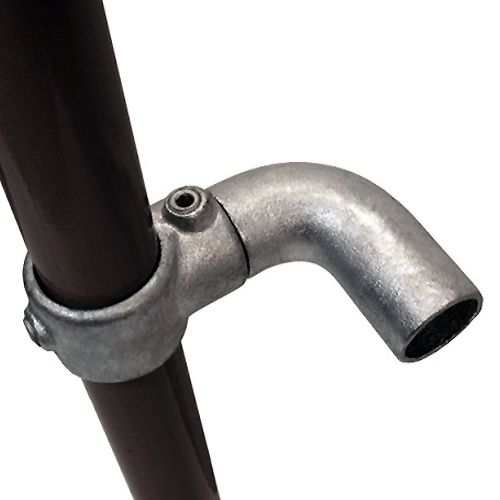

Fastclamp DDA02 Galvanised Handrail Connector
The FastClamp DDA02 ductile iron handrail connector is used to attach 42.4mm OD handrail tubes to a 48.3mm OD upright at a 90 degree angle. This bracket is used in conjunction with the DDA01 and DDA07 fittings.
Made of ductile iron to BS EN 1563:2018 with a hot dipped galvanised (HDG) finish to BS EN ISO 1461:2009
For installation with 1 1/4″ (32mm) NB (nominal bore) steel pipe and tube with a 42.4mm OD (outer diameter)
Complies with the Equality Act 2010 as well as part ‘M’ of the Building Regulations
Designed for use in public and commercial galvanised handrail systems to allow disabled access
