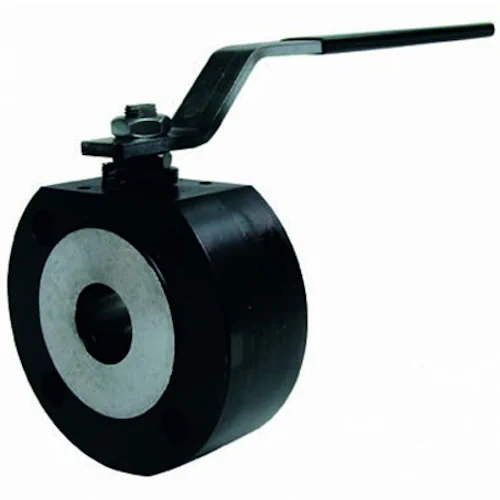

Genebre Art2105 Full Bore Carbon Steel Wafer Ball Valve
Lever operated wafer type ball valve with a full interior bore
Body made of painted carbon steel to ASTM A105 with a stainless steel 304 plug sealed with a PTFE gasket
For installation between PN16 flanges to the DIN 2501 standard
Stainless steel 304 ball with PTFE ball seats/seals
Stem made of stainless steel 304 with PTFE washers and zinc plated steel stem packing
Flange diameter: See datasheet
Bolt holes: See datasheet
Maximum operating pressure: 16 bar (PN16) at up to 50°C
Operating temperature range: -20°C – 180°C
