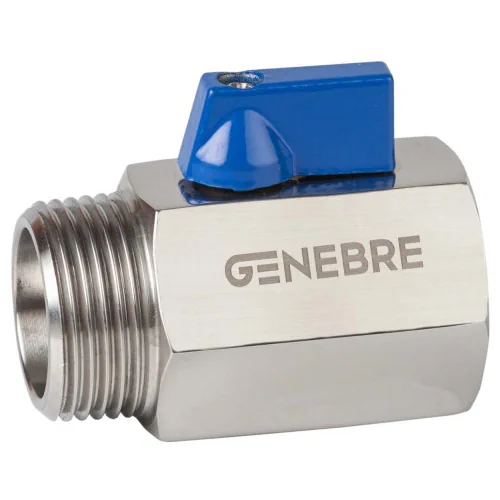

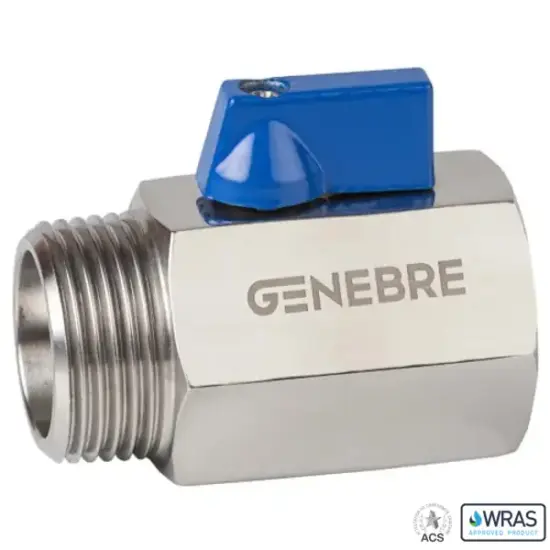

Genebre Art2005 Male/Female Stainless Steel 1-Piece Ball Valve (PN63)

Brand: Genebre
SKU: 51ART2005

£8.55£19.01 ex. VAT

About this product

Genebre Art2005 Stainless Steel 1-Piece Male/Female Ball Valve

Handle operated M/F ball valve with a reduced interior bore monoblock

Male BSPT taper & Female BSPP parallel threaded ends conforming to ISO 7-1 (BS EN 10226-1)

Monoblock (1-piece) body made of stainless steel 1.4408 (CF8M) with a polished exterior

Stainless steel 1.4408 (CF8M) ball with PTFE ball seats/seals

Stem made of stainless steel 304 with an FKM O-ring

Maximum operating pressure: 63 bar (PN63) at up to 50°C

Operating temperature range: -25°C – 180°C

Specification

Weight N/A
Dimensions N/A
Brand

Valve Type

Monoblock Reduced Bore Ball Valve

Connections

Male/Female BSP Threaded – ISO 228-1, BS EN 10226-1

Operation

Manual Lever Handle Operated

Body Material

Stainless Steel 1.4408 (Polished)

Ball Material

Stainless Steel 1.4408

Stem Material

Stainless Steel 316

Ball Seat Material

PTFE

Stem Packing Material

PTFE

Stem O-Ring Material

FKM

Maximum Operating Pressure

63 bar

Operating Temperature Range

-25°C – 180°C

Certification Availability

N/A
