Genebre Art 5952-00 Aluminium Electro-Pneumatic Positioner

Brand: Genebre
SKU: 78ART5952-00
Availability:In stock (can be backordered)

£513.88 ex. VAT

In stock (can be backordered)

About this product

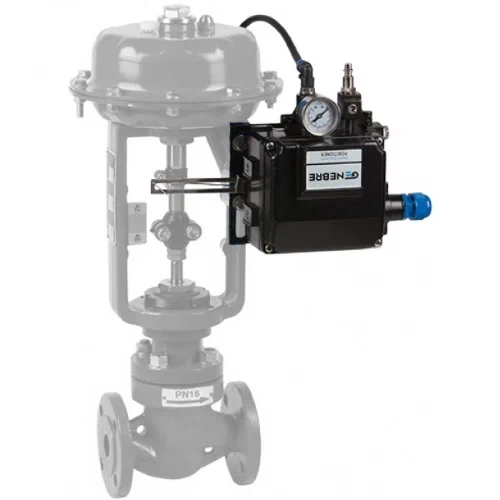

Genebre Art5952-00 Aluminium Electro-Pneumatic Positioner For Linear Actuators

Control signal input: 4 – 20mA

Suitable for double acting & spring return type actuators

Easily adjustable zero and span, easy conversion from reverse to direct action

Air connection: G1/4″

Air input pressure: 1.4 – 7 bar

Low air consumption (3 l/min at 1.4 bar)

Fast & accurate response

IP66 rated

Includes mounting bracket & shaft for Genebre Art5065/5065A control valves

Operating temperature: -20°C – 70°C

Specification

Weight 2.7 kg
Dimensions 237 × 120 × 170 mm
Valve Type

Positioner

Brand

Operating Medium

Compressed air (1.4 – 7 bar)

Connections

G1/4" Female BSPP Parallel Threaded

Control Signal

4 – 20mA

Body Material

Aluminium

Operating Temperature Range

-20°C – 70°C

Additional Information

IP66 Rated. Low air consumption. Suit DA & SR actuators. G1/8" Gauge connection.

Certification Availability

N/A
