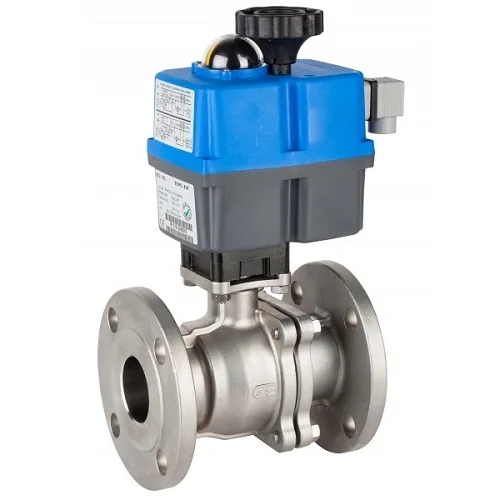

1″ Genebre Art5628A Stainless Steel ANSI-150 Flanged Actuated Ball Valve (Electric Actuator)

1″ Genebre Art5628 Stainless Steel PN40 Flanged Ball Valve Fitted With an Electric Actuator

Actuated Genebre Art2528 full bore 2-piece ball valve

PN40 Flanged ends conforming to BS EN 1092-1

Body made of shot blasted stainless steel 1.4408 (CF8M)

Face to face flange dimensions conforming to BS EN 558 (series 27)

Ball seats made of PTFE & 15% Graphite

PTFE body gasket

Stem O-ring made of FKM (Viton)

Blow-out proof stem

Direct actuator mounting plate conforming to ISO 5211 (F-04/F-05 x 11mm)

Fire-safe design with an anti-static device, required for use with flammable fluids

Maximum operating pressure: 40 bar (PN40)

Operating temperature range: -30°C – 180°C

Comes with a factory fitted GE-1 electric rotary actuator

Actuator electrical supply voltages: 24 – 240 VDC/VAC (50/60Hz)

Actuator electrical supply connections: DIN EN 175301-803

Required voltage must be specified at time of purchase
