Genebre Art5541 PN40 Flanged Actuated Stainless Steel 3-Way T-Port Ball Valve

Brand: Genebre
SKU: 81ART5541

£442.74£3,296.82 ex. VAT

About this product

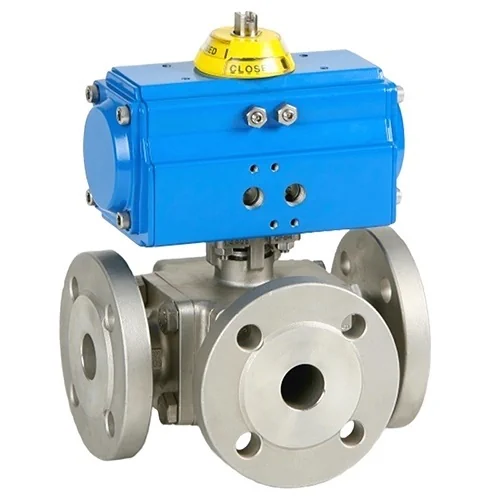

1″ Genebre Art5541 Stainless Steel Flanged 3-Way T-Port Ball Valve Fitted With a GNP Pneumatic Actuator

Actuated full bore 3-way stainless steel ball valve based on the Genebre Art2541

3-Way ball valve with an T-port ball configuration

Comes with PN40 flanged ends conforming to BS EN 1092-1:2018

Body made of shot blasted stainless steel 1.4408 (CF8M)

Ball made of stainless steel 1.4408 (CF8M)

Designed in accordance with the DIN 3357 & BS EN 12516-1 standards for industrial valves

Four ball seats, each made of PTFE & 15% graphite

Anti-static device enables use with flammable materials

Actuator mounted using the built-in ISO 5211 direct mount bracket

Blow-out proof stem made of stainless steel 316 with an FKM (Viton) O-ring

Maximum operating pressure: 40 bar (PN40)

Operating temperature range: -25°C – 180°C

Comes with a factory fitted Genebre Art5800 GNP pneumatic actuator

Rack and pinion operation with a 90° rotation (quarter turn)

Uses compressed air or any other inert gas for opening and closing the valve

Actuator feed connections: G1/4″ Threaded

Actuator feed pressure range: 2 – 8 bar

Actuator operating temperature range: -20°C – 80°C

VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners

Specification

Weight N/A
Dimensions N/A
Actuator Type

Double Acting, Spring Return

Brand

Connections

PN40 Flanged Ends – BS EN 1092-1:2018

Manufacturing Standard

BS EN 12516-1 (DIN 3357)

Operation

Actuated

Body Material

Stainless Steel 1.4408 (Shot Blasted)

Ball Material

Stainless Steel 1.4408

Stem Material

Stainless Steel 316

Ball Seats Material

PTFE + 15% Graphite

Stem Packing Material

PTFE

Flange Diameter

See datasheet

Flange PCD

See datasheet

Flange Thickness

See datasheet

Flange Bolt Holes

See datasheet

Maximum Operating Pressure

40 bar

Operating Temperature Range

-25°C – 180°C

Actuator Type

Art5800 GNP Pneumatic Rack & Pinion Actuator

Actuator Body Material

Aluminium ASTM 6005 (Painted)

Operating Medium

Compressed air or inert gas (2 – 8 bar)

Inlet Connections

1/4" (8mm) Female BSP parallel threaded

Actuator Operating Temperature Range

-20 – 80 Degrees C

Control Valve Interface

VDI/VDE 3845 (NAMUR)

Additional Information

Blow-out proof stem. Anti-static device.

Certification Availability

2.1 Letter of Conformity Only – Must be requested at time of order
