Genebre Art5529 Stainless Steel Actuated PN40 Flanged Ball Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5529 |
£668.57 – £3,171.39 ex. VAT
About this product

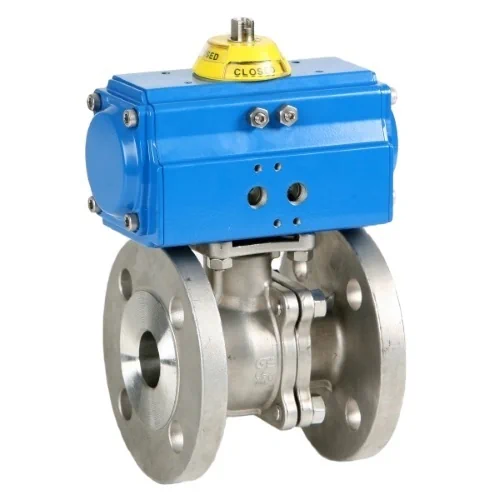

2 1/2″ Genebre Art 5529 Stainless Steel PN40 Flanged Ball Valve Fitted With a GNP Pneumatic Actuator
Actuated 2-piece full bore ball valve based on the Genebre Art2529
Comes with PN40 flanged ends conforming to BS EN 1092-1:2018
Body made of shot blasted stainless steel 1.4408 (CF8M)
Ball made of stainless steel 1.4408 (CF8M)
Face to face flange dimensions conform to BS EN 558 (Series-27)
Ball seats made of PTFE & 15% graphite
PTFE body gasket
Blow-out proof stainless steel 316 stem with an FKM (Viton) O-ring
Actuator mounted using the built-in ISO 5211 direct mount plate
Antistatic device provides electrical continuity and a fire-safe enabling use with flammable materials
Maximum operating pressure: 40 bar (PN40)
Operating temperature range: -30°C – 180°C
Comes with a factory fitted Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | PN40 Flanged Ends – BS EN 1092-1:2018 |
| Operation | Actuated |
| Body Material | Stainless Steel 1.4408 (Shot Blasted) |
| Ball Material | Stainless Steel 1.4408 |
| Stem Material | Stainless Steel 316 |
| Ball Seats Material | PTFE + 15% Graphite |
| Stem Packing Material | PTFE |
| Flange Diameter | See datasheet |
| Flange PCD | See datasheet |
| Flange Thickness | See datasheet |
| Flange Bolt Holes | See datasheet |
| Maximum Operating Pressure | 40 bar |
| Operating Temperature Range | -30°C – 180°C |
| Approvals | ATEX 94/9/CE Certified – Actuator (Safety). |
| Actuator Type | Art5800 GNP Pneumatic Rack & Pinion Actuator |
| Actuator Body Material | Aluminium ASTM 6005 (Painted) |
| Operating Medium | Compressed air or inert gas (2 – 8 bar) |
| Inlet Connections | 1/4" (8mm) Female BSP parallel threaded |
| Actuator Operating Temperature Range | -20 – 80 Degrees C |
| Control Valve Interface | VDI/VDE 3845 (NAMUR) |
| Additional Information | Dimensions to BS EN 558 series 27. Blow-out proof stem. Anti-static device. Fire-safe design. |
| Certification Availability | N/A |
