Genebre Art5528A Stainless Steel Actuated ANSI-150 Flanged Ball Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5528A |
£130.59 – £5,704.77 ex. VAT
About this product

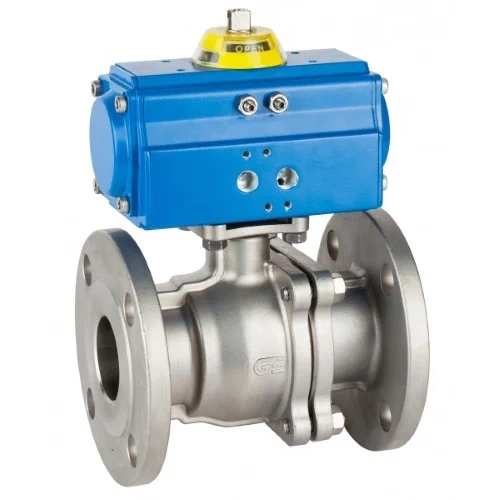

Genebre Art5528A Stainless Steel ANSI-150 Flanged Ball Valve Fitted With a GNP Pneumatic Actuator
Actuated 2-piece full bore ball valve based on the Genebre Art2528A
Comes with flanged ends conforming to ASME B16.5 (Class-150)
Body made of shot blasted stainless steel 316 (CF8M)
Designed in accordance with the ASME B16.34:2017 standard for flanged valves
Face to face flange dimensions in accordance with ASME B16.10
Ball seats made of PTFE & 15% graphite
Body gasket made of stainless steel 304 & graphite
Fire-safe design conforms to API 607
Blow-out proof stem
Actuator mounted using the built-in ISO 5211 direct mount plate
Antistatic device for use with flammable materials
Inspected and tested in accordance with the API 598 and API 6D standards
Maximum operating pressure: 19 bar/275 psi (PN19)
Operating temperature range: -30°C – 180°C
Comes with a factory fitted Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Can be set as normally closed or normally open
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | Class 150 Flanged Ends – ASME B16.5 |
| Operation | Actuated |
| Body Material | Stainless Steel 316 (Shot Blasted) |
| Ball Material | Stainless Steel 316 |
| Stem Material | Stainless Steel 316 |
| Ball Seats Material | PTFE + 15% Graphite |
| Stem Packing Material | PTFE |
| Flange Diameter | See datasheet |
| Flange PCD | See datasheet |
| Flange Thickness | See datasheet |
| Flange Bolt Holes | See datasheet |
| Maximum Operating Pressure | 19 bar |
| Operating Temperature Range | -30°C – 180°C |
| Approvals | ATEX 94/9/CE Certified – Actuator (Safety). |
| Actuator Type | Art5800 GNP Pneumatic Rack & Pinion Actuator |
| Actuator Body Material | Aluminium ASTM 6005 (Painted) |
| Operating Medium | Compressed air or inert gas (2 – 8 bar) |
| Inlet Connections | 1/4" (8mm) Female BSP parallel threaded |
| Actuator Operating Temperature Range | -20 – 80 Degrees C |
| Control Valve Interface | VDI/VDE 3845 (NAMUR) |
| Additional Information | Dimensions to ASME B16.10. Blow-out proof stem. Anti-static device. Fire-safe design. |
| Certification Availability | N/A |
