Genebre Art5526A Carbon Steel Actuated ANSI-150 Flanged Ball Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5526 |
£108.93 – £1,875.58 ex. VAT
About this product

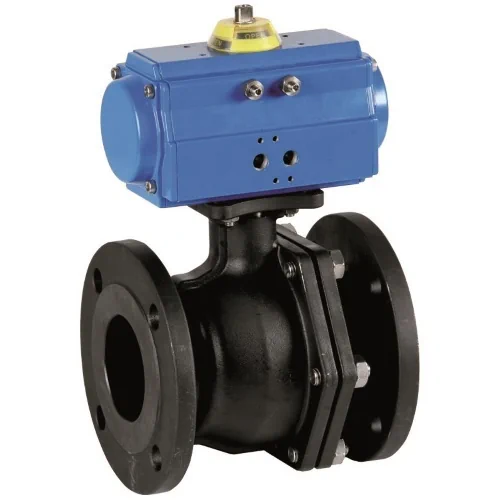

1/2″ Genebre Art5525 Full Bore Carbon Steel ANSI-150 Flanged Ball Valve Fitted With a GNP Pneumatic Actuator
Actuated 2-Piece full bore ball valve based on the Genebre Art2526A
Comes with flanged ends conforming to ANSI/ASME B16.5 (Class-150)
Body made of phosphatized carbon steel WCB
Ball made of stainless steel 316
Body gasket & ball seat made of PTFE & graphite
Design conforming to the ASME B16.34 standard
Face to face dimensions conforming to ASME B16.10
Fire-safe design conforming to API 607
Blow-out proof stem made of stainless steel 316
Actuated using the built-in direct mount conforming to ISO 5211
Built-in anti-static device guarantees electrical continuity between the ball, stem & body which is needed when using flammable fluids
Inspection & Testing: API 598, API 6D
Maximum operating pressure: 19 bar (PN19)
Operating temperature range: -30°C – 220°C
Comes with a factory fitted Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | Class 150 Flanged Ends – ASME B16.5 |
| Operation | Actuated |
| Body Material | Carbon Steel WCB (Phosphatized) |
| Ball Material | Stainless Steel 316 |
| Stem Material | Stainless Steel 316 |
| Body Gasket Material | PTFE + Graphite |
| Ball Seats Material | PTFE + 15% Graphite |
| Stem Packing Material | PTFE |
| Maximum Operating Pressure | 19 bar |
| Operating Temperature Range | -30°C – 250°C |
| Approvals | API 607. ATEX 94/9/CE Certified – Actuator (Safety). |
| Actuator Type | Pneumatic Piston Actuator (Spring Return) |
| Actuator Body Material | Stainless Steel 304 (Shot Blasted) |
| Operating Medium | Compressed air or inert gas (3 – 8 bar) |
| Inlet Connections | 1/8" (6mm) Female BSP parallel threaded |
| Additional Information | Dimensions to ASME B16.10. Blow-out proof stem. Anti-static device. |
| Certification Availability | N/A |
