Genebre Art5114 Stainless Steel Actuated Wafer Butterfly Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5114 |
£337.43 – £2,072.63 ex. VAT
About this product

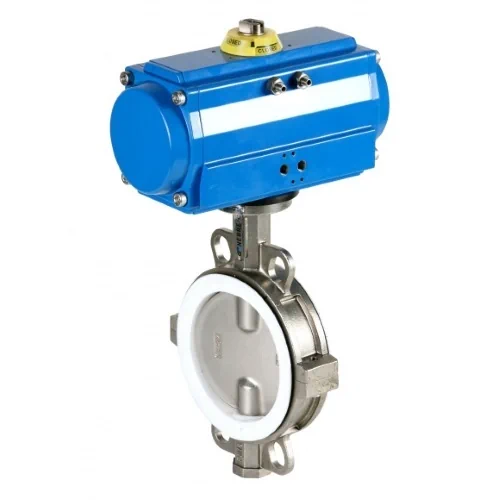

2″ Genebre Art5114 Stainless Steel Wafer Type Butterfly Valve With a GNP Pneumatic Actuator
Actuated wafer type butterfly valve based on the Genebre Art2104
Body made of shot blasted stainless steel CF8M (1.4408)
Suitable for installation with PN10 & PN16 pipe flanges to the BS EN 1092-1 standard as well as ANSI/ASME B16.11 (Class-150) flanges
Body seat made of PTFE backed with EPDM rubber
Butterfly disc made of shot blasted stainless steel CF8M (1.4408)
Actuated mounted using the built-in ISO 5211 direct mounting plate
Face to face dimensions conform to UNE EN 558-1 Series 20 (DIN 3202 K1)
Operating temperature range: -25°C – 180°C
Maximum operating pressure: 10 bar (PN10)
Comes with a factory fitted an Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | Wafer Type – PN10 & PN16 (BS EN 1092-1), class 150 (ASME B16.5) |
| Operation | Actuated |
| Body Material | Stainless Steel 1.4408 (Shot Blasted) |
| Ball Material | Stainless Steel 1.4408 (Polished) |
| Stem Material | Stainless Steel 316 |
| Seat Material | PTFE + EPDM |
| Stem Packing Material | Reinforced PTFE |
| Stem O-Rings Material | FKM |
| Flange Thickness | See datasheet |
| Maximum Operating Pressure | 16 bar |
| Operating Temperature Range | -25°C – 180°C |
| Approvals | ATEX 94/9/CE Certified – Actuator (Safety). |
| Actuator Type | Pneumatic Piston Actuator (Spring Return) |
| Actuator Body Material | Stainless Steel 304 (Shot Blasted) |
| Operating Medium | Compressed air or inert gas (3 – 8 bar) |
| Inlet Connections | 1/8" (6mm) Female BSP parallel threaded |
| Additional Information | Dimensions conform to BS EN 558-1 Series 20 (DIN 3202 K1). |
| Certification Availability | N/A |
