Genebre Art5113 Cast Iron Actuated Wafer Butterfly Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5113 |
£110.98 – £3,830.46 ex. VAT
About this product

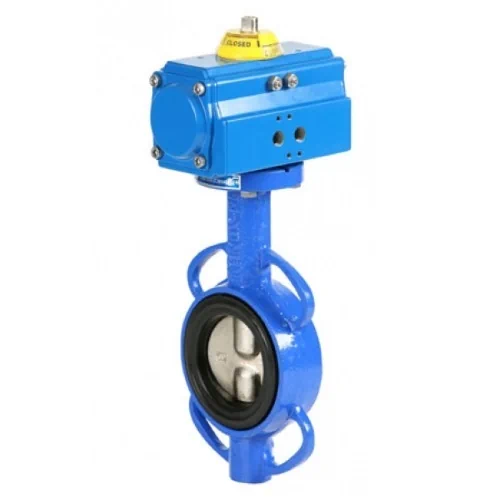

2″ Genebre Art5113 Cast Iron Wafer Type Butterfly Valve With a GNP Pneumatic Actuator
Actuated wafer type butterfly valve based on the Genebre Art2103
Body made of cast iron EN-GJL-200 (GG-20) with an epoxy coating
Suitable for installation with PN10 & PN16 pipe flanges to the BS EN 1092-1 standard as well as ANSI/ASME B16.11 (Class-150) flanges
Body seat made of EPDM rubber
Butterfly disc made of nickel plated ductile iron (EN-GJS-400)
Actuated mounted using the built-in ISO 5211 direct mounting plate
Face to face dimensions conform to UNE EN 558-1 Series 20 (DIN 3202 K1)
WRAS approved (suitable for use with potable water)
Operating temperature range: -20°C – 120°C
Maximum operating pressure: 16 bar (PN16)
Comes with a factory fitted an Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | Wafer Pattern (For installation between flanges) |
| Operation | Actuated |
| Body Material | Cast Iron GG20 (Epoxy Coated) |
| Ball Material | Ductile Iron GGG40 (Nickel Plated) |
| Stem Material | Stainless Steel 416 |
| Seat Material | EPDM |
| Stem Packing Material | PTFE + Graphite |
| Stem O-Rings Material | NBR |
| Flange Thickness | See datasheet |
| Maximum Operating Pressure | 16 bar |
| Operating Temperature Range | -20°C – 120°C |
| Approvals | ATEX 94/9/CE Certified – Actuator (Safety). WRAS Approved (potable water). |
| Actuator Type | Pneumatic Piston Actuator (Spring Return) |
| Actuator Body Material | Stainless Steel 304 (Shot Blasted) |
| Operating Medium | Compressed air or inert gas (3 – 8 bar) |
| Inlet Connections | 1/8" (6mm) Female BSP parallel threaded |
| Additional Information | Dimensions conform to BS EN 558-1 Series 20 (DIN 3202 K1). |
| Certification Availability | N/A |
