Genebre Art5111 Ductile Iron Actuated Wafer Butterfly Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5111 |
£265.36 – £1,676.33 ex. VAT
About this product

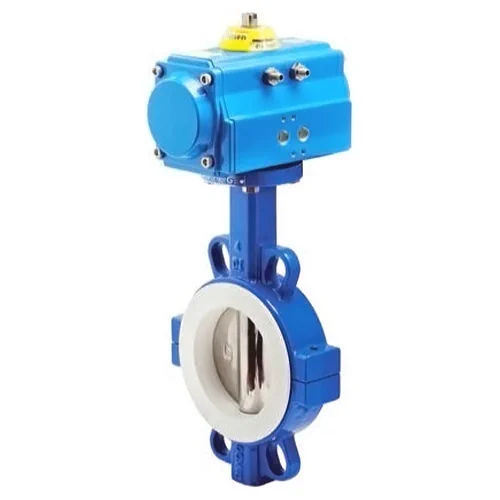

2″ Genebre Art5111 Ductile Iron Wafer Type Butterfly Valve With a GNP Pneumatic Actuator
Actuated wafer type butterfly valve based on the Genebre Art2101
Body made of ductile iron EN-GJS-400 (GGG-40) with an epoxy coating
Suitable for installation with PN10 & PN16 pipe flanges to the BS EN 1092-1 standard as well as ANSI/ASME B16.11 (Class-150) flanges
Body seat made of PTFE backed with EPDM
Butterfly disc made of polished stainless steel 1.4408 (CF8M)
Actuated mounted using the inbuilt ISO 5211 direct mounting plate
Face to face dimensions conform to UNE EN 558-1 Series 20 (DIN 3202 K1)
Operating temperature range: -25°C – 180°C
Maximum operating pressure: 10 bar (PN10)
Comes with a factory fitted an Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | Wafer Type – PN10 & PN16 (BS EN 1092-1), class 150 (ASME B16.5) |
| Operation | Actuated |
| Body Material | Ductile Iron GGG40 (Epoxy Coated) |
| Ball Material | Stainless Steel 1.4408 (Polished) |
| Stem Material | Stainless Steel 316 |
| Seat Material | PTFE + EPDM |
| Stem Packing Material | Reinforced PTFE |
| Stem O-Rings Material | FKM |
| Flange Thickness | See datasheet |
| Maximum Operating Pressure | 10 bar |
| Operating Temperature Range | -25°C – 180°C |
| Approvals | ATEX 94/9/CE Certified – Actuator (Safety). |
| Actuator Type | Pneumatic Piston Actuator (Spring Return) |
| Actuator Body Material | Stainless Steel 304 (Shot Blasted) |
| Operating Medium | Compressed air or inert gas (3 – 8 bar) |
| Inlet Connections | 1/8" (6mm) Female BSP parallel threaded |
| Additional Information | Dimensions conform to BS EN 558-1 Series 20 (DIN 3202 K1). |
| Certification Availability | N/A |
