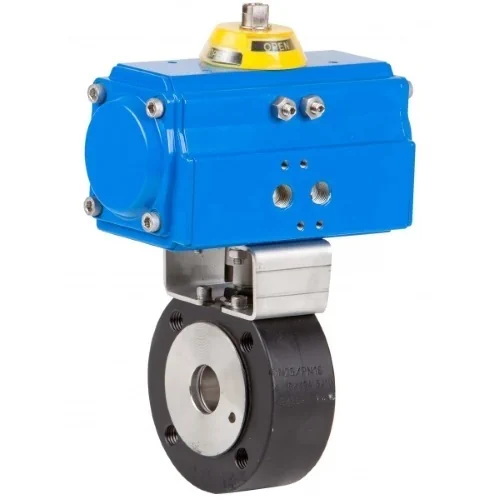

1 1/4″ Genebre Art5105 Carbon Steel Wafer Ball Valve With GNP Pneumatic Actuator (Spring Return)
Actuated wafer type ball valve based on the Genebre Art2105
Full bore wafer ball valve in carbon steel
Body made of carbon steel (ASTM A105)
Wafer body suitable for installation between PN16 pipe flanges to the BS EN 1092-1 standard
Ball seats and gasket made of PTFE
Ball made of grade 304 stainless steel
Maximum operating pressure: 16 bar (PN16)
Operating temperature range: -20°C – 180°C
Comes with a factory fitted Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Can be set as normally closed or normally open
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
