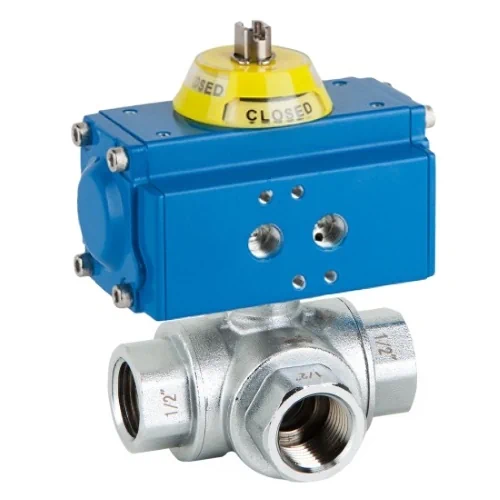

1/2″ Genebre Art5070 3-Way L-Port Brass Ball Valve With GNP Pneumatic Actuator
Actuated 3-way, L-ported ball valve base on the Genebre Art3272E
3-Way full bore ball valve in brass with an L-port ball configuration
Nickel plated brass body conforming to UNE-EN 12165
Female BSPP parallel threaded ends conforming to the ISO 228/1 standard
Ball seats made of PTFE
Actuated using the built-in ISO 5211 and DIN 3337 direct mounting plate
NBR O-rings
Maximum operating pressure: 25 bar (PN25)
Operating temperature range: -10°C – 150°C
Comes with a factory fitted Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control valves or positioners
