Genebre Art5065A Actuated Carbon Steel 2-Way Modulating Control Valve (ANSI-150 Flanged)

Brand: Genebre
SKU: 81ART5065A

£778.33£3,087.24 ex. VAT

About this product

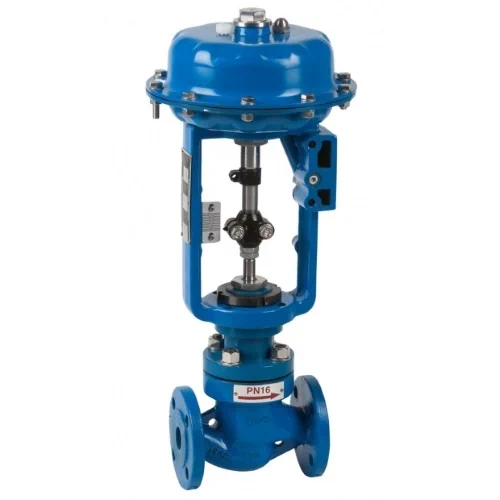

Genebre Art5065A Carbon Steel 2-Way Modulating Pneumatic Control Valve

Single seat 2-way globe valve with diaphragm type pneumatic actuator

Body made of carbon steel ASTM A216 WCB with an epoxy painted finish

Class-150 flanged ends to ANSI/ASME B16.5

Stainless steel 304 plug with stainless steel & graphite seats

Spring return (normally closed) pneumatic actuator

Actuator air supply connection: G1/8″ threaded

Maximum air input pressure: 6 bar

Maximum operating pressure: 19 bar (water) / 13 bar (steam)

Operating temperature range: -20°C – 230°C

Positioner not included, see related products for suitable positioners

Specification

Weight N/A
Dimensions N/A
Actuator Type

Spring Return

Brand

Connections

Class 150 Flanged Ends – ASME B16.5

Operation

Actuated

Body Material

Carbon Steel ASTM A216 WCB (Epoxy Painted)

Disc Material

Stainless Steel 304

Stem Material

Stainless Steel 304

Body Gasket Material

Graphite + Stainless Steel

Ball Seats Material

Graphite + Stainless Steel

Stem Packing Material

Graphite

Maximum Operating Pressure

16 bar (Steam: 13 bar)

Operating Temperature Range

-20°C – 230°C

Actuator Type

Pneumatic Diaphragm Actuator (Spring Return)

Actuator Body Material

Carbon Steel (Epoxy Painted)

Operating Medium

Compressed air or inert gas (3.5 – 6 bar)

Inlet Connections

1/8" (6mm) Female BSP parallel threaded

Additional Information

Positioner not included.

Certification Availability

N/A
