About this product

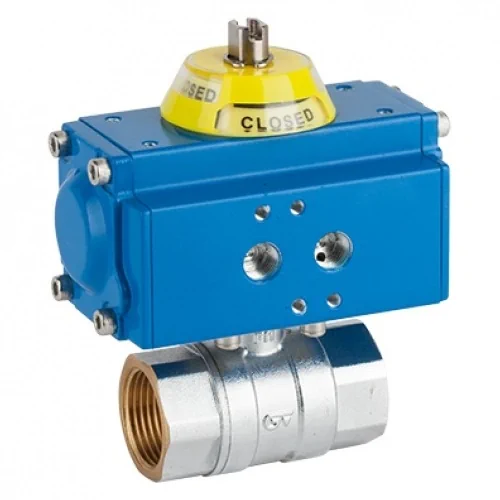

1/2″ Genebre Art5029 Full Bore Brass Ball Valve With GNP Pneumatic Actuator
Actuated 2-piece full bore brass ball valve based on the Albion Art160
Body and stem made of nickel plated brass
Female BSPP parallel threaded ends to ISO 228-1
Ball made of chrome plated brass
PTFE seats & seals
Actuated using the built-in ISO 5211 direct mount
CE approved
Low operating torque design
Operating temperature range: -20°C – 120°C
Maximum operating pressure: 40 bar (PN40)
Comes with a factory fitted Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1 |
| Operation | Actuated |
| Body Material | Brass (Nickel Plated) |
| Ball Material | Brass (Chrome Plated) |
| Stem Material | Brass (Nickel Plated) |
| Ball Seats Material | PTFE |
| Stem Packing Material | FKM (Viton) |
| Maximum Operating Pressure | 40 bar |
| Operating Temperature Range | -20°C – 120°C |
| Approvals | ATEX 94/9/CE Certified – Actuator (Safety). CE Marked (Quality) |
| Actuator Type | Art5800 GNP Pneumatic Rack & Pinion Actuator |
| Actuator Body Material | Aluminium ASTM 6005 (Painted) |
| Operating Medium | Compressed air or inert gas (2 – 8 bar) |
| Inlet Connections | 1/4" (8mm) Female BSP parallel threaded |
| Actuator Operating Temperature Range | -20°C – 80°C |
| Control Valve Interface | VDI/VDE 3845 (NAMUR) |
| Additional Information | Low operating torque design |
| Certification Availability | N/A |
