Genebre Art5025 3-Piece Stainless Steel Actuated Ball Valve

Brand: Genebre
SKU: 81ART5025

£75.19£774.74 ex. VAT

About this product

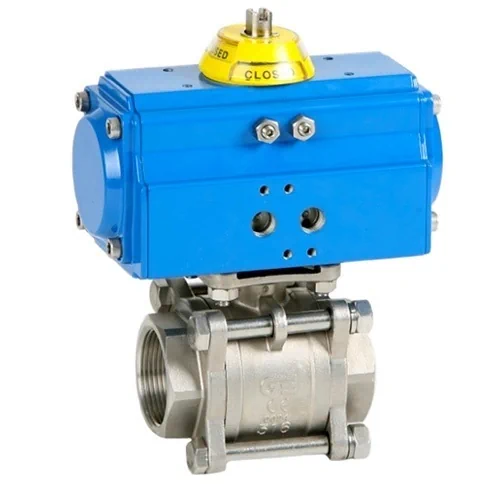

1/4″ Genebre Art5025 Stainless Steel Ball Valve With GNP Pneumatic Actuator

Actuated 3-piece full bore stainless steel ball valve based on the Genebre Art2025

Female BSPP parallel threaded ends conforming to the BS EN 10226-1 and ISO 7-1 standards

Body made of shot blasted stainless steel 1.4408 (CF8M)

Ball seats and stem gasket made of PTFE & 15% Graphite

Stem O-ring made of FKM (Viton)

Actuated using the built-in ISO 5211 direct mount

Maximum operating pressure: 63 bar (PN63)

Operating temperature range: -25°C – 180°C

Comes with a factory fitted Art5800 GNP pneumatic actuator

Rack and pinion operation with a 90° rotation (quarter turn)

Uses compressed air or any other inert gas for opening and closing the valve

Actuator feed connections: G1/4″ Threaded

Actuator feed pressure range: 2 – 8 bar

Actuator operating temperature range: -20°C – 80°C

VDI/VDE 3845 (NAMUR) mount for compatible control

Specification

Weight N/A
Dimensions N/A
Actuator Type

Double Acting, Spring Return

Brand

Connections

Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1

Operation

Actuated

Body Material

Stainless Steel 1.4408 (Shot Blasted)

Ball Material

Stainless Steel 1.4408 (Polished)

Stem Material

Stainless Steel 316

Body Gasket Material

PTFE + Graphite

Ball Seats Material

PTFE + 15% Graphite

Stem Packing Material

PTFE

Maximum Operating Pressure

63 bar

Operating Temperature Range

-25°C – 180°C

Approvals

ATEX 94/9/CE Certified – Actuator (Safety).

Actuator Type

Art5800 GNP Pneumatic Rack & Pinion Actuator

Actuator Body Material

Aluminium ASTM 6005 (Painted)

Operating Medium

Compressed air or inert gas (2 – 8 bar)

Inlet Connections

1/4" (8mm) Female BSP parallel threaded

Actuator Operating Temperature Range

-20°C – 80°C

Control Valve Interface

VDI/VDE 3845 (NAMUR)

Additional Information

Blow-out proof stem. SS304 Nuts & bolts.

Certification Availability

N/A
