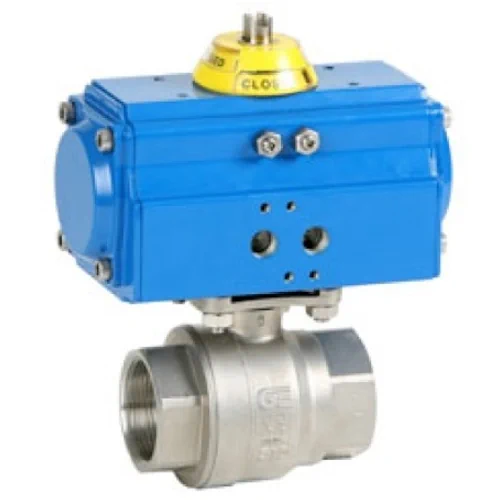

Genebre Art5015 2-Piece Stainless Steel Actuated Ball Valve
| Brand: | Genebre |
|---|---|
| SKU: | 81ART5015 |
£75.16 – £223.68 ex. VAT
About this product
1/4″ Genebre Art5015 Stainless Steel Ball Valve With GNP Pneumatic Actuator
Actuated 2-piece full bore ball valve based on the Genebre Art2015
Female BSPP parallel threaded ends conforming to BS EN 10226-1 and ISO 7-1
Body made of shot blasted stainless steel 1.4408 (CF8M)
Ball seats and stem gasket made of PTFE & 15% Graphite
Stem O-ring made of FKM (Viton)
Actuated using ISO 5211 direct mounting plate
Maximum operating pressure: 63 bar (PN63)
Operating temperature range: -25°C – 180°C
Comes with a factory fitted Art5800 GNP pneumatic actuator
Rack and pinion operation with a 90° rotation (quarter turn)
Uses compressed air or any other inert gas for opening and closing the valve
Actuator feed connections: G1/4″ Threaded
Actuator feed pressure range: 2 – 8 bar
Actuator operating temperature range: -20°C – 80°C
VDI/VDE 3845 (NAMUR) mount for compatible control
Specification
| Weight | N/A |
|---|---|
| Dimensions | N/A |
| Actuator Type | Double Acting, Spring Return |
| Brand | |
| Connections | Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1 |
| Operation | Actuated |
| Body Material | Stainless Steel 1.4408 (Shot Blasted) |
| Ball Material | Stainless Steel 1.4408 (Polished) |
| Stem Material | Stainless Steel 316 |
| Body Gasket Material | PTFE + Graphite |
| Ball Seats Material | PTFE + 15% Graphite |
| Stem Packing Material | FKM |
| Maximum Operating Pressure | 63 bar |
| Operating Temperature Range | -20°C – 180°C |
| Approvals | ATEX 94/9/CE Certified – Actuator (Safety). |
| Actuator Type | Art5800 GNP Pneumatic Rack & Pinion Actuator |
| Actuator Body Material | Aluminium ASTM 6005 (Painted) |
| Operating Medium | Compressed air or inert gas (2 – 8 bar) |
| Inlet Connections | 1/4" (8mm) Female BSP parallel threaded |
| Actuator Operating Temperature Range | -20°C – 80°C |
| Control Valve Interface | VDI/VDE 3845 (NAMUR) |
| Additional Information | Blow-out proof stem. |
| Certification Availability | N/A |
