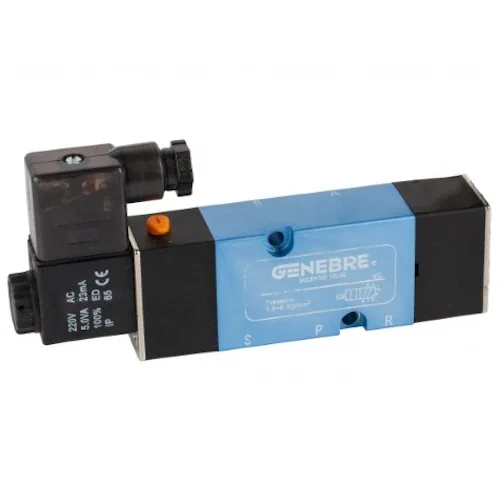

Genebre Art4519 NAMUR Mount 5 Ways Solenoid Valve

Brand:	Genebre
SKU:	78ART4519

£23.07 – £27.83 ex. VAT

Voltage

Clear

About this product

5 way, 2 position solenoid valve made of a zinc-aluminium alloy to UNI 3717 (ASTM B240)

Spool and piston made of aluminium to UNI 6362 (ASTM B241 – 6063)

Designed to NAMUR VDI/VDE 3845

1/4″ (8mm) NB pressure inlet & exhaust connections

NBR rubber seal

Operating pressure range: 2 – 10 bar

Operating temperature range: -5 – 60 Degrees C

Voltage tolerance: -/+10%

Weight	N/A
Dimensions	N/A
Brand	Genebre
Valve Type	Solenoid Valve
Connections	Female BSPP Parallel Threaded (ISO 228-1, BS EN 10226-1)
Mounting	VDI/VDE 3845 (NAMUR)
Body Material	Zinc Aluminium Alloy (UNI 3717)
Spring	Stainless Steel
Seat Material	NBR Rubber
Maximum Operating Pressure	10 bar
Operating Temperature Range	-5°C – 60°C
Approvals	WRAS Approved (Potable water). PED 2014/68/EU & TRD 421 (Quality).
Certification Availability	N/A
