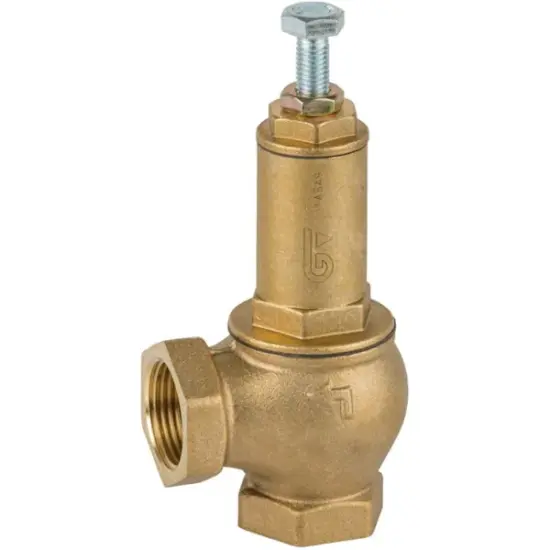

Genebre Art3190 Adjustable Brass Pressure Relief Valve
Pressure relief valve (safety valve) with a brass construction (see datasheet for exact materials)
Female BSPP parallel threaded ends conforming to ISO 228-1
Standard spring made of zinc plated steel to BS EN 10270-1
Disc seat/seal made of PTFE
Pressure setting adjusted using the brass screw protruding from the valve top
Pressure regulation range with standard spring (Pnr): 0 – 10 bar
Over-pressure: 10% of Pnr
Reclosing value: 20% of Pnr
Shell strength testing to BS EN 12266-1 (P10)
Seat tightness testing to BS EN 12266-1 (P12)
Suitable for use with water, steam and non dangerous gases
For vertical installation only
Maximum operating pressure: 16 bar (PN16)
Operating temperature range: 0°C – 180°C
