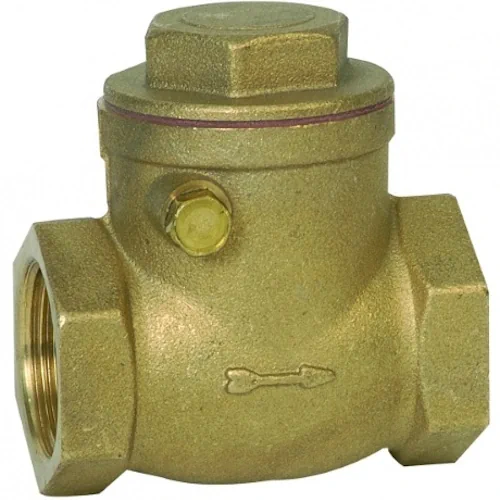

Genebre Art3180 Brass Swing Check Valve
Body and bonnet made of CW617N brass to UNE EN 12165
Swing type closing mechanism with a CW617N brass disc and NBR rubber gasket
Female BSPP parallel threaded ends conforming to ISO 228-1
Suitable for horizontal assembly only
Maximum operating pressure: 12 bar (PN12) at up to 80°C
Operating temperature range: -20°C – 100°C
