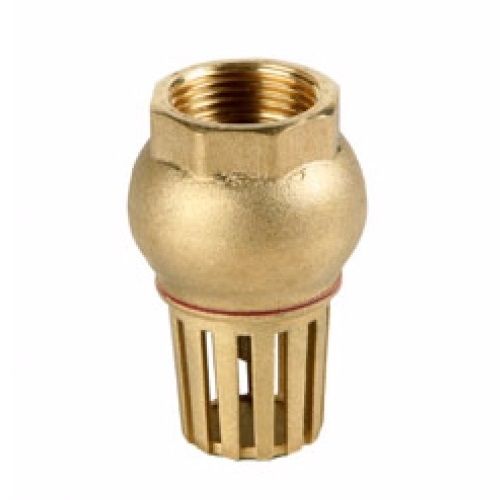

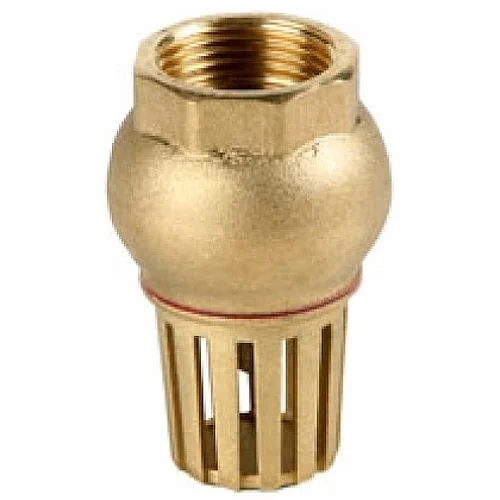

Genebre Art3145 Brass Foot Valve & Strainer (PN10)

Brand:	Genebre
SKU:	30ART3145

£6.76 – £89.15 ex. VAT

Valve Size

Clear

About this product

Suitable for use on many types of hydraulic and pneumatic installations.

Made of brass conforming to UNE-EN 12165.

Female BSPP parallel threaded ends conforming to ISO 228-1.

Integrated strainer/filter in UNI 5305 brass

NBR seal

Maximum operating pressure: 10 bar (PN10) at up to 80°C

Working temperature range: 0°C – 90°C

Weight	N/A
Dimensions	N/A
Brand	Genebre
Valve Type	Foot Valve & Strainer
Connections	Female BSPP Parallel Threads – ISO 228-1, BS EN 10226-1
Body Material	Brass (CW617N)
Closing Mechanism Material	Brass (Disc)
Seat Material	NBR
Maximum Operating Pressure	8 bar
Operating Temperature Range	0°C – 90°C
Additional Information	Minimum opening pressure: See datasheet
Certification Availability	N/A
