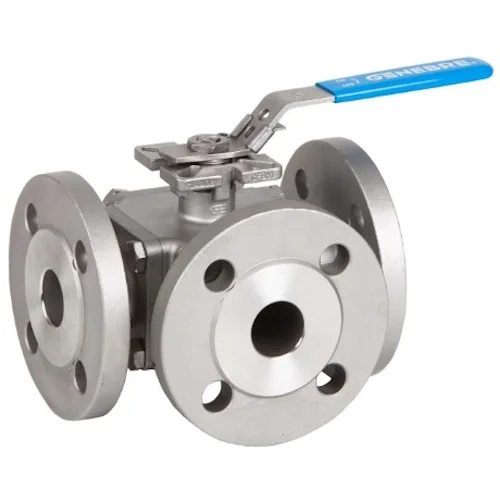

Genebre Art2541 Full Bore 3-Way T-Port Stainless Steel Flanged Ball Valve
Manual lever operated 3-way ball valve with a full interior bore
Valve body and flange caps made of shot blasted stainless steel 1.4408 (CF8M), sealed with a PTFE body gasket
PN16 flanged ends conforming to the BS EN 1092-1:2018 standard (PN40 up to 2″ NB)
T-ported ball in stainless steel 1.4408 (CF8M) with PTFE & 15% graphite seats/seals
Blow-out proof stem in stainless steel 316 with PTFE stem packing and an FKM O-ring
Face to face flange dimensions conforming to AMSE B16.10
Flange diameter: See datasheet
Flange pitch circle diameter (PCD): See datasheet
Bolt holes: See datasheet
ISO 5211 direct mount for installation of an actuator
Valve torque at zero pressure: See datasheet
Built-in locking lever with vinyl sleeve
Built-in anti-static device, suitable for use with flammable liquids
Manufactured to the DIN 3357 and BS EN 12516-1 standards
Maximum operating pressure: 40 bar (PN40) at up to 100°C
Operating temperature range: -25°C – 180°C
