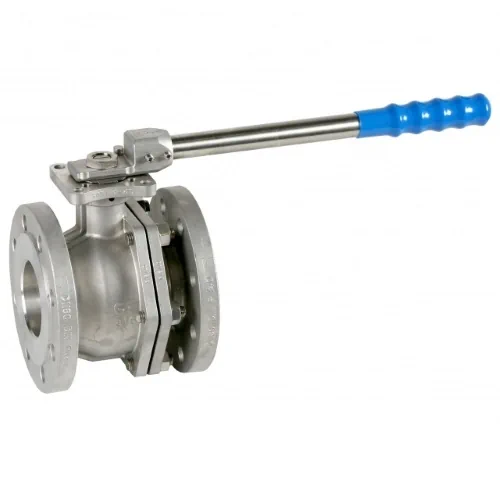

Genebre Art2529 Full Bore Stainless Steel Ball Valve
Manual lever operated ball valve with a full interior bore
2-Piece body with a shot blasted stainless steel 1.4408 (CF8M) valve body and cap, sealed with a PTFE body gasket
PN40 flanged ends conforming to the BS EN 1092-1:2018 standard
Stainless steel CF8M (1.4408) ball with PTFE & graphite ball seats/seals
Blow-out proof stem in stainless steel 316 with an FKM O-ring and PTFE packing
Face to face flange dimensions conform to bs EN 558 (series 27)
Flange diameter: See datasheet
Flange pitch circle diameter (PCD): See datasheet
Bolt holes: See datasheet
Built-in ISO 5211 direct mount bracket for installation of actuators
Valve torque at zero pressure: See datasheet
Fire-safe with a built in anti-static device, required for use with flammable fluids
Operated with a stainless steel 304 handle
Maximum operating pressure: 40 bar (PN40) at up to 75°C
Operating temperature range: -30°C – 180°C
