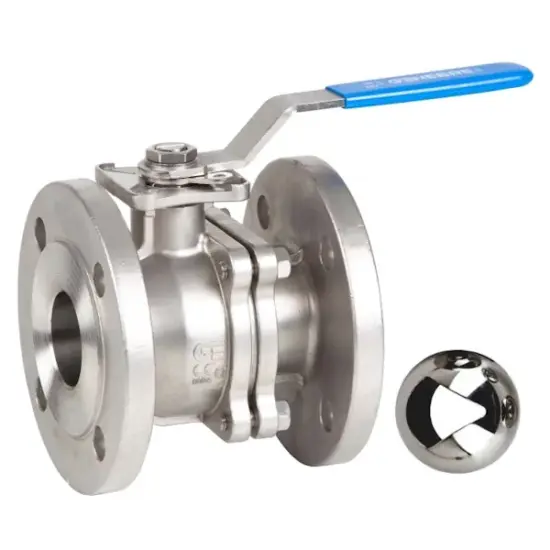

Genebre Art2528V Full Bore Stainless Steel V-Port Ball Valve (PN16/40 Flanged)

Genebre Art2528V Full Bore 2-Piece Stainless Steel V-Port Ball Valve (PN40 Flanged)

Manual lever operated 2-piece ball valve with a full interior bore

2-Piece body design, valve body and cap made of shot blasted stainless steel 1.4408 (CF8M), sealed with a PTFE body gasket

PN16/PN40 Flanged ends conforming to BS EN 1092-1:2018

Polished stainless steel 1.4408 (CF8M) ball with a 30°, 60° or 90° V cut out

Reinforced PTFE & graphite ball seats/seals

Blow-out proof stem made of stainless steel 316 with PTFE stem packing and an FKM rubber O-ring

Face to face flange dimensions conforming to BS EN 558 (series 27)

Flange diameter: See datasheet

Flange pitch circle diameter (PCD): See datasheet

Bolt holes: See datasheet

ISO 5211 direct mount for actuator installation

Valve torque at zero pressure: See datasheet

Built-in stainless steel 304 locking lever with a vinyl sleeve

Fire-safe design with an anti-static device, required for use with flammable fluids

Maximum operating pressures

• 1/2″ – 2″: 40 bar (PN40) at up to 100°C
• 2 1/2″ – 4″: 16 bar (PN16) at up to 150°C
• 5″ – 8″: 16 bar (PN16) at up to 75°C

Operating temperature range: -30°C – 180°C

Kv Values: View Datasheet
