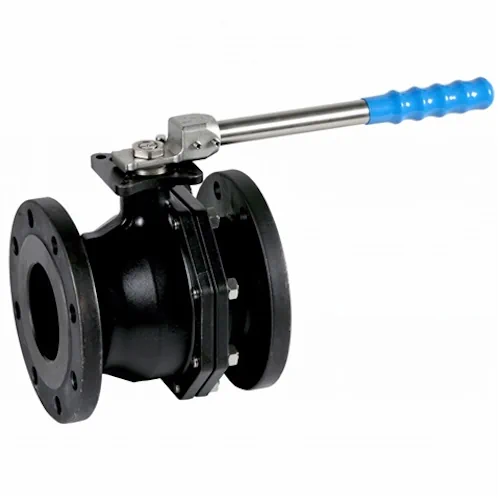

Genebre Art2526A Full Bore Carbon Steel Ball Valve (ANSI-150 Flanged)
Manual lever operated ball valve with a full interior bore
2-Piece body design with valve body and cap made of phosphatized carbon steel WCB, sealed with PTFE & graphite body gasket
Flanged ends conforming to ASME B16.5 (Class-150)
Stainless steel 316 ball with PTFE & graphite ball seats/seals
Blow-out proof stem in stainless steel 316 with PTFE stem packing and an FKM O-ring
Built-in ISO 5211 direct mount plate allows for installation of an actuator (F04 x 9mm)
Valve torque at zero pressure: 5Nm
Built-in stainless steel 304 locking lever with vinyl sleeve
Face to face flange dimensions conforming to ASME B16.10
Flange diameter: See datasheet
Flange pitch circle diameter (PCD):See datasheet
Bolt holes: See datasheet
Manufactured to the ASME B16.34 standard
Built-in anti-static device and fire-safe design conforming to API 607
Inspected & tested to API 598 and API 6D
Maximum operating pressure: 19 bar (PN19) at up to 210°C
Operating temperature range: -30°C – 250°C
