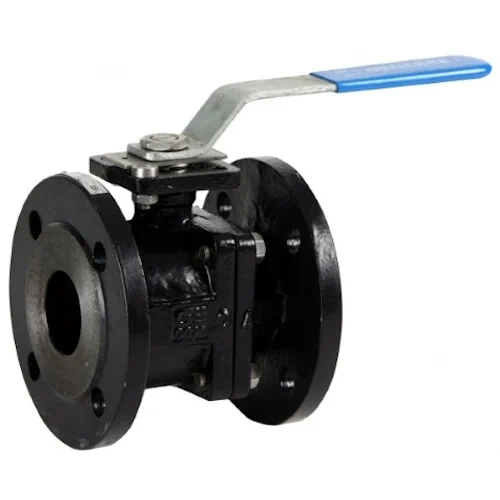

Genebre Art2525 2-Piece Full Bore PN16 Flanged Ductile Iron Ball Valve
Manual lever operated ball valve with a full interior bore
2-Piece valve body made of painted ductile cast iron EN-GJS-400 (GGG-40)
PN16 Flanged ends conforming to BS EN 1092-1:2018
Ball made of polished stainless steel 1.4308 with PTFE & graphite ball seats/seals
Valve body and cap secured with stainless steel 304 nuts and bolts, sealed with an PTFE body gasket
Blow-out proof stem made of stainless steel 304 with PTFE stem packing and an FKM O-ring
Face to face flange dimensions conforming to BS EN 558 (series 27)
Bolt holes: See datasheet
Flange diameter: See datasheet
Flange pitch circle diameter (PCD): See datasheet
ISO 5211 direct mount plate for installation of an actuator
Valve torque at zero pressure: See datasheet
Built-in carbon steel locking lever with vinyl sleeve
Maximum operating pressure: 16 bar (PN16) at up to 175°C
Operating temperature range: -30°C – 180°C
