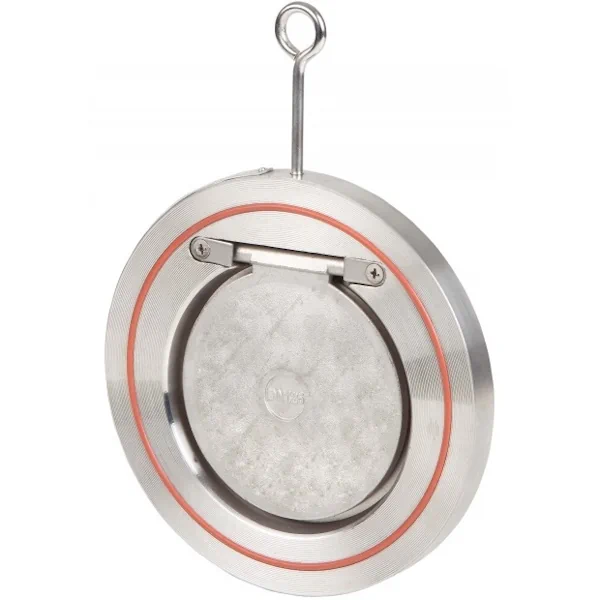

Genebre Art2406 Stainless Steel Single Disk Wafer Check Valve (PN16)

Brand:	Genebre
SKU:	51ART2406

£33.15 – £841.94 ex. VAT

Valve Size

Clear

About this product

Valve body made of shot blasted stainless steel 1.4408 (CF8M)

Suitable for installation between PN10 and PN16 pipe flanges to BS EN 1092-1 as well as ASME B16.5 (class-150) flanges

Disk/plate made of shot blasted stainless steel 1.4408 (CF8M) with an FKM rubber seat/seal

FKM rubber external O-rings/gaskets creates a seal between the valve and flanges

Suitable for installation in horizontal or vertical flow configurations

Low head losses

Minimum opening pressure: 0 mbar (horizontal) – 6 mbar (vertical)

Maximum operating pressure: 16 bar (PN16) at up to 50°C

Operating temperature range: -20°C – 180°C

Weight	N/A
Dimensions	N/A
Brand	Genebre
Valve Type	Swing Check Valve
Connections	Wafer Type – PN10/16 (BS EN 1092-1), Class 150 (ASME B16.5)
Body Material	Stainless Steel 1.4408 (Shot Blasted)
Closing Mechanism Material	Stainless Steel 1.4408 (Shot Blasted)
Body Gasket Material	FKM
Seat Material	FKM
Maximum Operating Pressure	16 bar
Operating Temperature Range	-20°C – 180°C
Additional Information	Suitable for vertical or horizontal installation. Low head losses. Minimum vertical opening pressure 6mbar.
Certification Availability	N/A
