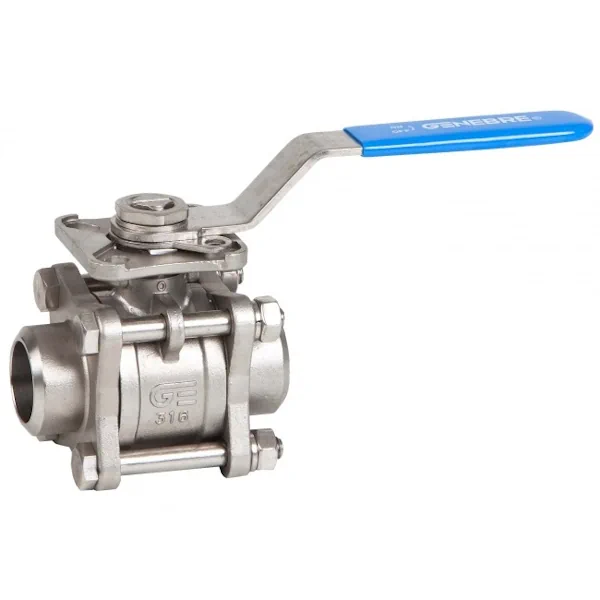

Genebre Art2026 Butt Weld 3-Piece Stainless Steel Ball Valve (PN63)

Brand:	Genebre
SKU:	51ART2026

£12.83 – £507.61 ex. VAT

Valve Size

Clear

About this product

Lever operated ball valve with a full interior bore

3-piece body made of shot blasted stainless steel 1.4408 (CF8M) sealed with PTFE & graphite gaskets

Butt weld ends conforming to ANSI B16.25

Polished stainless steel 1.4408 (CF8M) ball with ball seats/seals made of PTFE & graphite

Stainless steel 316 blow-out proof stem with PTFE stem packing and an FKM O-ring

Built-in ISO 5211 direct mounting plate for installation of actuators

Valve torque at zero pressure: 4Nm

Built-in stainless steel 304 locking lever with an vinyl sleeve

Maximum operating pressure: 63 bar (PN63) at up to 50°C

Operating temperature range: -25°C – 180°C

Weight	N/A
Brand	Genebre
Valve Type	3-Piece Full Bore Ball Valve
Connections	Butt weld – ASME B16.25
Operation	Manual Lever Handle Operated
Body Material	Stainless Steel 1.4408 (Shot Blasted)
Ball Material	Stainless Steel 1.4408 (Polished)
Stem Material	Stainless Steel 316
Body Gasket Material	PTFE + Graphite
Ball Seat Material	PTFE + 15% Graphite
Stem Packing Material	Stainless Steel 304
ISO 5211 Direct Mount Size	See Datasheet
Maximum Operating Pressure	63 bar
Operating Temperature Range	-25°C – 180°C
Additional Information	Blow-out proof stem. SS304 Nuts & bolts.
Certification Availability	N/A
