Genebre Art2025 Full Bore 3-Piece Stainless Steel Ball Valve (PN63)

Brand: Genebre
SKU: 51ART2025

£12.83£465.31 ex. VAT

About this product

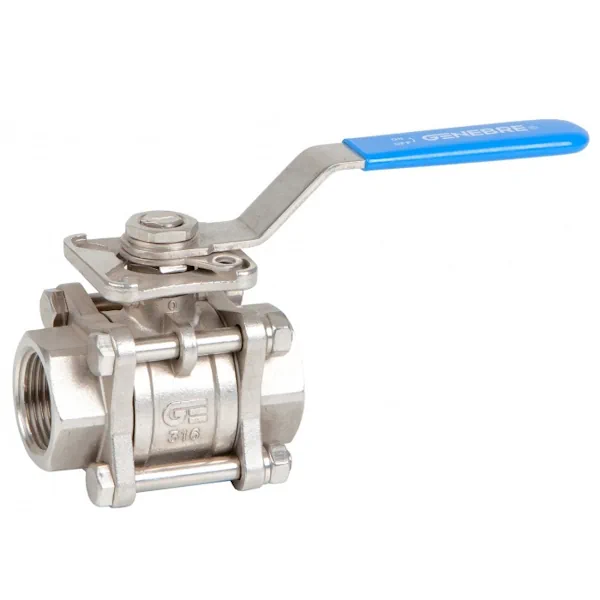

Genebre Art2025 Stainless Steel 3-Piece Ball Valve

Lever operated ball valve with a full interior bore

3-piece body made of shot blasted stainless steel 1.4408 (CF8M) sealed with PTFE & graphite gaskets and secured with stainless steel 304 nuts and bolts

Female BSPP parallel threaded ends conforming to ISO 7-1 (BS EN 10226-1)

Polished stainless steel 1.4408 (CF8M) ball with ball seats/seals made of PTFE & graphite

Stainless steel 316 blow-out proof stem with PTFE stem packing and an FKM O-ring

Built-in ISO 5211 direct mounting plate for installation of actuators

Valve torque at zero pressure: 4Nm

Built-in stainless steel 304 locking lever with an vinyl sleeve

Maximum operating pressure: 63 bar (PN63) at up to 50°C

Operating temperature range: -25°C – 180°C

Specification

Weight N/A
Brand

Valve Type

3-Piece Full Bore Ball Valve

Connections

Female BSPP Parallel Threads – ISO 7-1, BS EN 10226-1

Operation

Manual Lever Handle Operated

Body Material

Stainless Steel 1.4408 (Shot Blasted)

Ball Material

Stainless Steel 1.4408 (Polished)

Stem Material

Stainless Steel 316

Body Gasket Material

PTFE + Graphite

Ball Seat Material

PTFE + 15% Graphite

Stem Packing Material

Stainless Steel 304

ISO 5211 Direct Mount Size

See Datasheet

Maximum Operating Pressure

63 bar

Operating Temperature Range

-25°C – 180°C

Additional Information

Blow-out proof stem. SS304 Nuts & bolts.

Certification Availability

N/A
