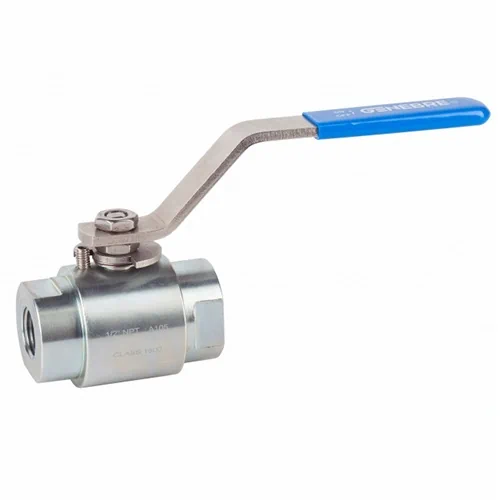

Genebre Art2007 High Pressure Carbon Steel Ball Valve
Lever operated high pressure ball valve with a full interior bore
2-Piece body made of zinc plated carbon steel to ASTM A105 sealed with an FKM O-ring
Female BSPP parallel threaded ends conforming to ISO 228-1
Stainless steel 304 ball with PEEK (polyetheretherketone) ball seats/seals
Stem made of stainless steel 304 with PTFE stem packing
Built-in anti-static device
Manufactured to the ASME B16.34 standard (Class 1500)
Maximum operating pressure: 255 bar (3700 psi) at up to 30°C
Operating temperature range: -30°C – 250°C
